SUPERPOSITION THEOREM [DC]


SUPERPOSITION THEOREM:


Statement:


The voltage across (or current through) an element in a linear circuit is the algebraic sum of the voltages across (or current through) that element due to each independent source acting alone.


Steps to apply Superposition theorem:

1   1.Select a single source acting alone. Short circuit the other voltage source and open       circuit the other current sources.

     2.Find the current through or the voltage across the required element using
        suitable  network simplification technique.

     3. Repeat the above two steps for all the sources.

     4.  Add all the individual effects produced by individual sources.

  Superposition theorem cannot be applied to solve electric circuits with diodes because diode is a non-linear element.


Solving using Superposition theorem is easier as only one source is considered at a time.

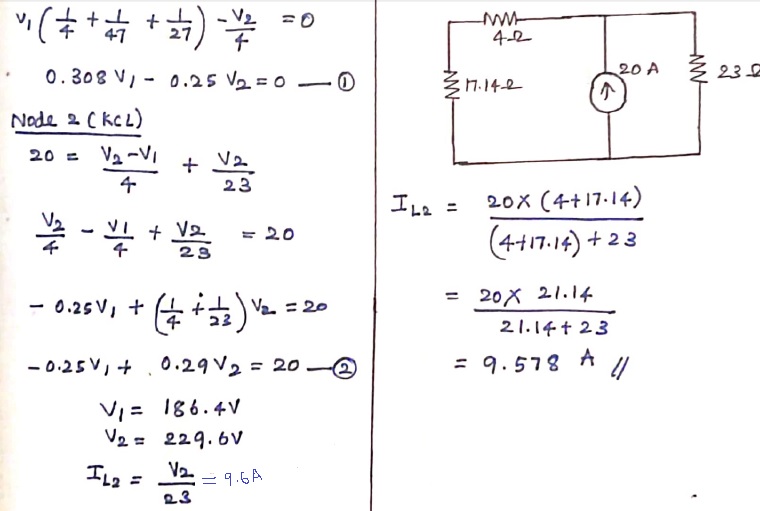

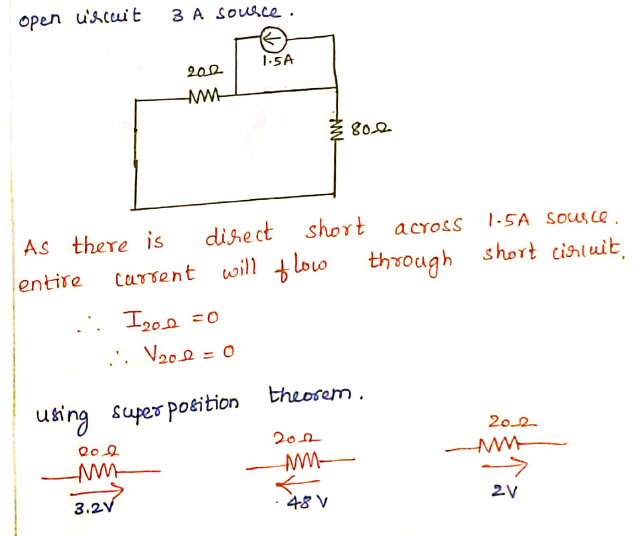

PROBLEM 1   (May 2015, May 2007 - 8 Marks)






PROBLEM 2 [ DEC 2010, MAY 2012]  (8 Marks)








PROBLEM 3 [MAY 2017]  (8 Marks)
















PROBLEM 4 [DEC 2016]  (16 Marks)







PROBLEM 5 [MAY 2011]  (8 Marks)
